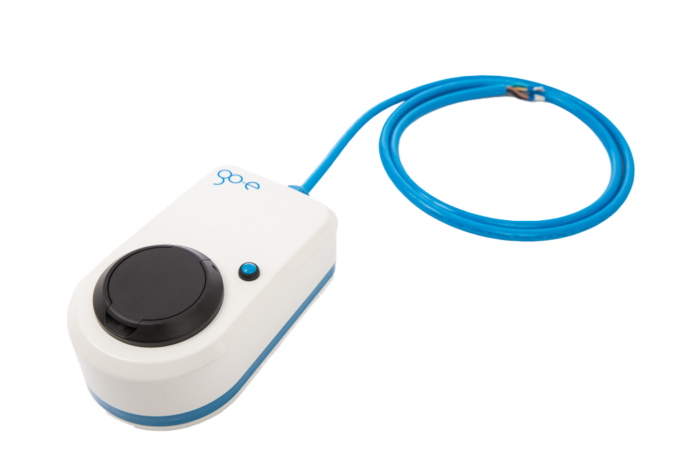

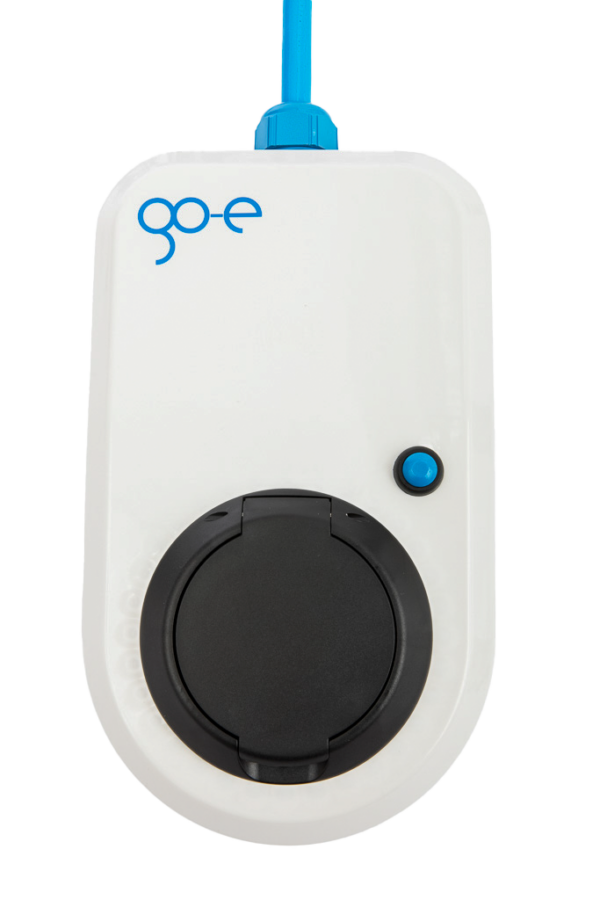

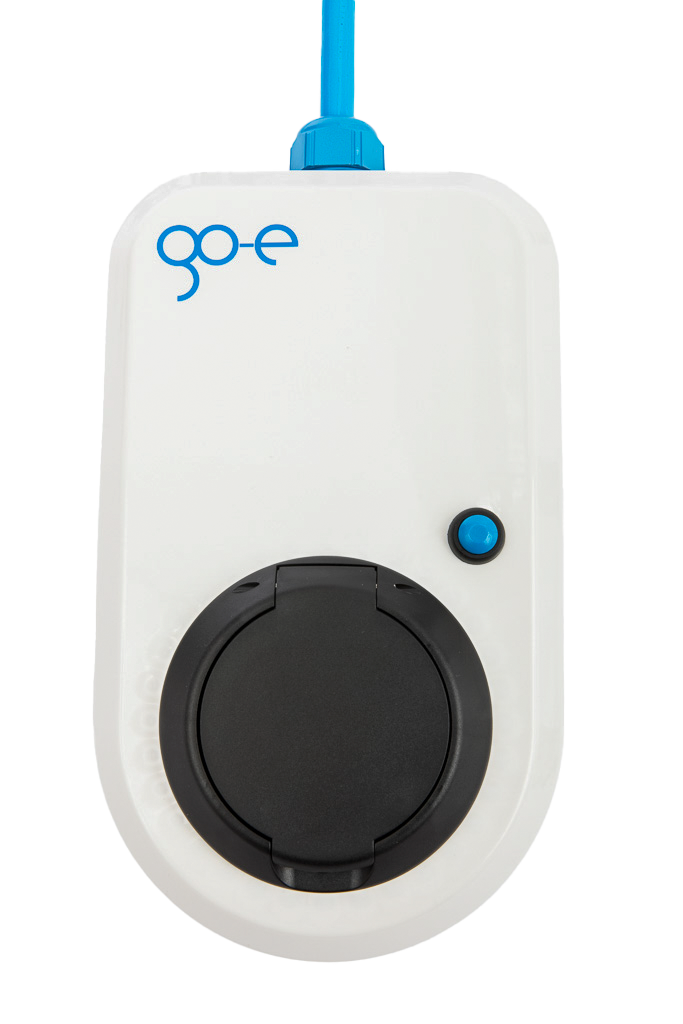

go-e lader Gemeni

Product specifications:

• Dimensions: approx. 15,5 x 26 x 11 cm
• Weight: approx. 2.34 kg
• Connection cable: 1.8 m, 5 x 6 mm² for permanent connection (Typ H07BQ-F)
• Nominal voltage: 230/240 V (single-phase) / 400/415 V (three-phase)
• Mains frequency: 50 Hz
• Power grid types: TT/TN/IT
• Standby power: 3.1W (LEDs switched off) to 5.2 W (LEDs bright)
• RFID: 13.56 MHz
• WiFi: 802.11b/g/n 2.4GHz / frequency band 2412-2472Mhz

Permissible ambient conditions:

• Installation site: indoors and outdoors, without direct sunlight
• Operating temperature: -25 °C to + 40 °C
• Storage temperature: -40 °C to + 85 °C
• Average temperature in 24 hours: maximum 35 °C
• Altitude: maximum 2,000 m above sea level
• Relative humidity: not more than 95 % (non-condensing)
• Impact resistance: IK08

Charging Capacity:

• Maximum charging power 7,4 kW (32 A 1-phase)

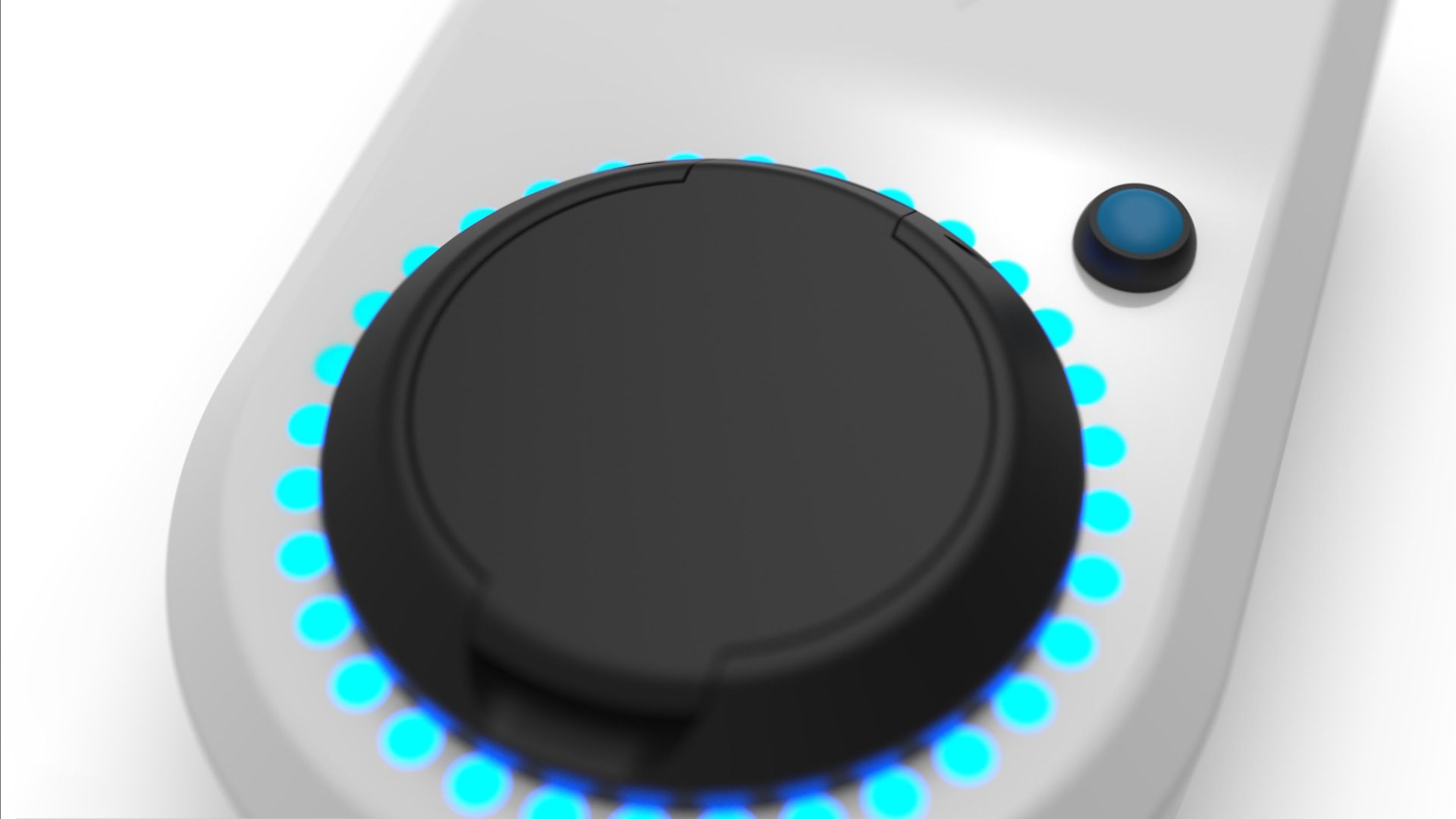

• Ampere and status Display: readable via LED ring and app
• Adjusting charging power: by button and app
• Charging power adjustable between 1.4 kW and 22 kW (via the charging current in 1 ampere steps between 6 A and 32 A) depending on the number of phases of the car‘s onboard charger:
  • Single-phase charging car: 1.4 kW to 7.4 kW (country-specific limitations need to be observed)

Connection to vehicle:

• Type 2 socket (EN 62196-2) with mechanical locking device (own type 2 cable required, available as accessory)
• vehicles with type 1 can be charged with adapter cable type 2 to type 1 (available as accessories)

Safety functions:

• RCD protection module with DC current detection: 20 mA AC, 6 mA DC
• Protection class: I
• Pollution degree: II
• Anti-theft device: charging cable locking device
• RFID access control: one learned RFID chip included
• Input voltage: phase and voltage testing
• Switching functions: testing of the switching functions
• Ground check: for TT, TN grids (deactivatable ground check for IT grid – Norway mode)
• Current sensor: 1-phase
• Grid-serving control: two data cables for connection to ripple control receiver
• IP55 protected against dirt and water, suitable for permanent outdoor operation
• go-e network operator API: for authorised access by the electricity grid operator to the go-e Charger for grid-serving power control
• Modbus TCP: e.g. for grid-serving power control by the electricity grid Operator

App and connectivity:

• Local (WiFi hotspot) or worlwide** (WiFi) controlling and monitoring
• Adjustment/check of the charge (voltage, current, power, energy)
• Adjusting the current level in 1 ampere steps
• Start/stop function
• Management of RFID chips/cards (up to 10 users per charger) / Access control (RFID/App)
• Scheduler
• Electricity meter (total kWh and total amount per RFID chip)
• kWh limit mode / Eco mode** / Planned charge mode**
• Push notifications**
• Cable unlock functions
• Flexible energy tariffs with intelligent charging management**/***
• Static load balancing**
• Photovoltaic connection via open API interface (programming required)**
• OCPP 1.6**
• LED Adjustment
• Management of the charging levels via button on the charging Station
• Updateable for later functions (Smart home, etc.)**
• Automatic unlocking of the charging cable in the event of a power failure
• 1-/3-phase switching via app – even during the charging process
• Synchronisation of charging processes with the cloud and display of the past charging processes**
• Documented public API interfaces: HTTP, MQTT, Modbus TCP
