Beskrivelse

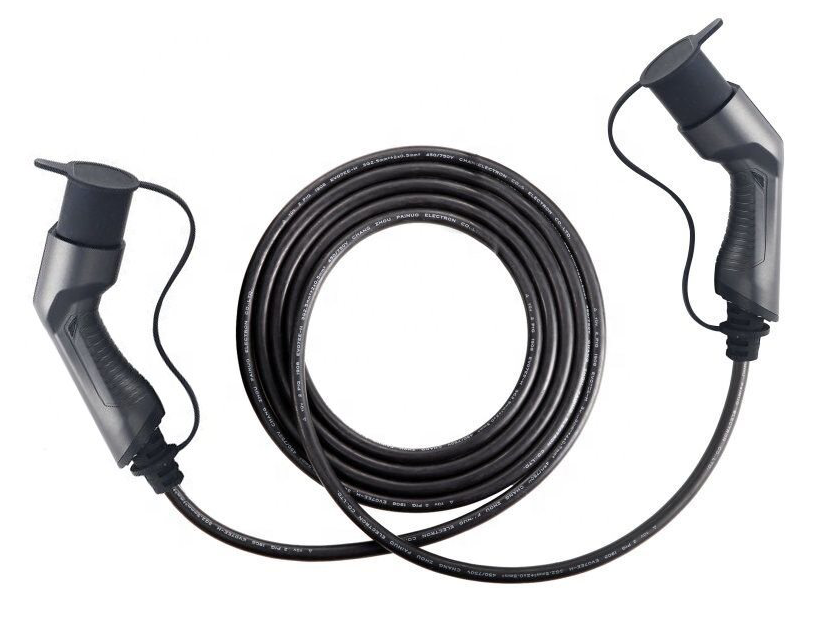

Mode 3 Kabel 32A 1-fase (7,4 kwh), type 1, (10 m) – TPU kvalitet (bedre/dyre kvalitet enn TPE)

Product Specification:

Model: ANSM3T1A32P1M10

Standard: Type 1 mode 3

Certificate: TUV, CE

Current: 32A (7,4 kwh) 1-fase

Length: 5,7,5 ,10

IP55

Colour: Black

Cable: Straight

Material: TPU

Key features:

-Standard Connector, can be identified by EV (with Type 2 inlet) correctly and charge effectively.

-Rugged design. Its structural strength is sufficient enough to support the rolling of an electric car.

-Unique Arc Extinguishing technique makes sure that there won’t have any electric sparks when plugging in and plugging out.

-Safe & Reliable. The cable is made of flame-retardant TPU material, which can withstand the direct fire combustion within a safe time.

-Durable. The advanced Crimping Technology ensures a working life of over 10000 times safe plugging in or out without any off-line error.

Package measurement and weight:

Item No: ANSM3T1A32P1M10

Packages: 1 carton inner box

Packing Size: 42*38*8(cm)

Weight: kg

Product professional data:

Service life:>10000 times

Insulation resistance: > 1000M Ω

Terminal temperature rise: <50K

Withstand voltage: 2500V

Contact impedance: 0.5m Ω Max

Working temperature: -30°C ~+ 50°C

Shell Material: TPU Thermo Plastic (Insulator inflammability UL94 O)

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber
